New WP-577VH wall plate switcher transmitter

Posted on September 10, 2014 by KVMGalore   |  0 comments

Kramer ElectronicsNew WP-577VH wall plate CATx switcher transmitter for HDMI, VGA and stereo audio with RS-232 data and control

Kramer Electronics is pleased to introduce WP-577VH, a wall plate CATx switcher transmitter (2-gang Decora), for HDMI, VGA and stereo audio with support for RS-232 data and control. The unit automatically switches to the last connected input and transmits the signals to a compatible DGKat twisted pair receiver (such as the TP-578H). Stereo audio can be either embedded into the signal (HDMI or VGA) or transmitted over blank video.

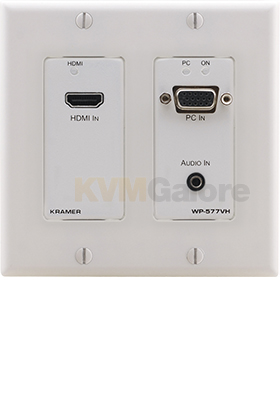

WP-577VHWP-577VH is decorative and easy to install. It includes optional remote power over CATx cable (Power Connect Plus). K-Link™ compatibility gives wide flexibility to RS-232 to either, control remote devices, be controlled by Kramer Protocol 3000 or to send data to remote, external RS-232 devices. The DGKat technology allows for easy installation - up to 70m (230ft) at 1080p60 over CATx cables. These automatic switching features make WP-577VH an ideal solution for a Bring-Your-Own-Device environment such as board-rooms, hotel rooms and hospitality venues.

WP-577VH key features:

  • Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel)
  • HDTV Compatible
  • HDCP Compliant
  • HDMI Support - x.v. Color™ and 3D
  • EDID PassThru - Passes EDID/HDCP signals from source to display
  • Automatic Switching - To the last connected or priority video input
  • Power Connect Plus™ System - A single connection to the transmitter or the receiver powers both units. Compatible devices: TP-578H K-Link Compatibility
  • Automatic Analog Audio Detection and Embedding
  • Automatic Live Input Detection - based on 5V presence
  • Data Equalization and Reclocking
  • Protocol 3000 Support
  • Dimensions - 3.46" W x 4.65" D x 4.12" H


For more information on all Kramer products, please visit Kramer's store on
